Injection molding flash is a common injection molding defects that occurs when excess material escapes from the mold cavity, forming unwanted thin protrusions along parting lines or ejector pin locations. This defect not only affects the appearance of molded parts but can also lead to functional issues and increased post-processing costs. Understanding the causes of flash—such as improper mold clamping, excessive injection pressure, or material inconsistencies—is crucial for effective prevention.
By optimizing mold design, fine-tuning processing parameters, and ensuring proper maintenance, manufacturers can minimize flash formation and enhance production efficiency. Addressing flash at its source leads to higher-quality parts, reduced waste, and lower overall manufacturing costs.
What is Injection Molding Flash?
Injection mold flashing is a common manufacturing defect where excess plastic seeps out of the mold cavity, creating thin, unwanted protrusions along parting lines, ejector pin areas, or venting gaps. This defect, also known as “flash in plastic molding,” affects the aesthetics, functionality, and dimensional accuracy of molded components. If left unchecked, excessive flash increases post-processing costs and may lead to rejected parts, impacting overall production efficiency.
Flashes injection molding typically occurs in high-pressure molding environments where molten plastic forces its way into unintended spaces. The severity of this defect depends on multiple factors, including mold integrity, machine settings, and material properties. Identifying its root cause is essential to implementing effective corrective measures.
Common Locations of Flash on Molded Parts
Flash can appear in various regions of a molded part, often depending on mold design and process parameters. The most common locations include:

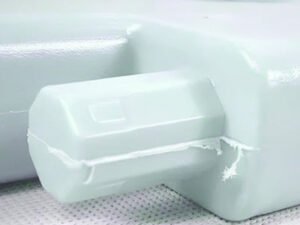

- Parting Line: The junction where the two halves of the mold meet is highly susceptible to flash, especially if the mold does not close properly.
- Ejector Pin Areas: Insufficient sealing around ejector pins may allow molten plastic to escape, creating thin plastic burrs.
- Venting Areas: Mold vents help release trapped air, but excessive clearance in venting channels can permit plastic seepage.
- Shut-offs and Inserts: Areas with moving components or inserts may experience flash due to gaps forming under high-pressure conditions.
Causes of Injection Moulding Flash
Excessive Injection Pressure and Its Impact on Mold Sealing
High injection pressures are sometimes necessary to ensure complete mold filling, particularly for complex geometries. However, when pressure exceeds the mold’s ability to seal effectively, molten plastic forces its way into undesired gaps. This issue is particularly problematic in molds with inadequate venting or those handling low-viscosity materials that flow too easily. Maintaining an optimal pressure balance prevents unnecessary stress on the mold and minimizes flash defects.
Improper Clamping Force Leading to Mold Misalignment
The clamping unit of an injection molding machine is responsible for holding the mold halves together during the injection phase. If the clamping force is insufficient or uneven, the mold may slightly separate under pressure, creating pathways for plastic leakage. Misalignment due to inadequate clamping force often results in inconsistent flash patterns and potential mold damage over time. Adjusting the clamping force to match the material flow characteristics and mold requirements is essential to maintaining a secure seal.
Worn-Out or Poorly Designed Mold Components
Aging molds or those with suboptimal designs are frequent culprits of flash defects in injection molding. Over time, repeated production cycles cause mold wear, particularly at critical sealing points like parting lines, shut-offs, and ejector pin areas. Additionally, poorly fitted mold inserts or excessive venting gaps increase the risk of plastic seepage. Regular mold maintenance, precision machining, and quality mold materials help mitigate these issues and extend mold lifespan.
Material-Related Issues, Including Viscosity and Filler Content
The type of plastic used in injection molding significantly influences the likelihood of flash defects. Low-viscosity resins flow more easily, making them prone to escaping through small mold gaps. Similarly, plastics with high filler content may not behave predictably under high-pressure conditions, leading to unintended leakage. Selecting the appropriate material formulation and adjusting injection parameters accordingly can help reduce flash formation while maintaining part quality.
Effects of Flash on Molded Parts
Aesthetic Defects and Product Appearance
Flash defect in injection molding often results in unwanted plastic protrusions that compromise a product’s visual appeal. In industries where aesthetics are critical, even minor flash defects can impact branding and customer perception, necessitating costly secondary finishing processes to maintain a high-quality appearance.
Functional Issues Caused by Excess Material
Plastic molding flash can interfere with the functionality of molded parts. In precision components, even a small excess of material can disrupt assembly, prevent proper sealing, or lead to mechanical failures. For example, in electronic housings, flash may cause poor-fitting enclosures, while in medical devices, excess plastic could introduce contamination risks.
Post-Processing Costs Associated with Flash Removal
Removing flash from molded parts adds additional labor, material waste, and processing time, increasing overall production costs. Furthermore, excessive flash can lead to higher reject rates, ultimately impacting production efficiency and profitability. Preventing flash at the molding stage is far more cost-effective than post-molding correction.
Preventing Injection Molded Flash
How to avoiding flash in injection molding requires a combination of precise mold design, optimized processing parameters, and strict maintenance practices.
Optimizing Mold Design for Proper Parting Line Sealing
A well-designed and precision machining mold ensures that parting lines close tightly, eliminating gaps where molten plastic might escape. Proper venting also prevents excess pressure buildup, reducing the risk of leakage. Incorporating wear-resistant materials in high-contact areas extends mold life and maintains sealing integrity over extended production runs.
Adjusting Injection Molding Parameters
Fine-tuning injection speed, pressure, and temperature settings minimizes flash formation. Excessive injection pressure can force plastic into unintended mold gaps, while overly high temperatures reduce material viscosity, making it more likely to seep through small openings. Balancing these parameters ensures optimal material flow and reduces stress on the mold, helping to prevent flash in plastic injection moulding.
Ensuring Proper Mold Maintenance and Alignment
Inspecting and replacing worn components—such as ejector pins, shut-offs, and sealing surfaces—ensures the mold remains in optimal condition. Proper mold alignment, verified through precision calibration, prevents separation at the parting line during high-pressure injection.
Selecting Appropriate Materials
High-viscosity resins are less likely to seep through mold gaps, making them a better choice when working with molds prone to slight misalignments. Additionally, reducing excessive filler content can improve material flow consistency, lowering the risk of flash formation.
Flash Removal Techniques: How to Remove Flash
Manual Trimming
Manual trimming is the most basic and hands-on method for flash removal. It involves using tools such as knives, shears, or rotary tools to manually cut away excess material from the molded part. While it is cost-effective for low-volume production or prototypes, it can be time-consuming and inconsistent. Manual trimming is best suited for parts with minimal flash and when small quantities are produced.

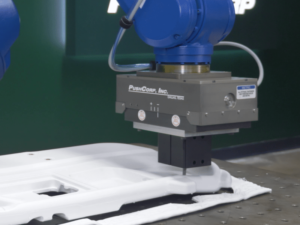

Automated Flash Removal
For higher volumes, automated flash removal is a more efficient solution. This process uses machines like rotary tumblers, vibratory finishers, or automated trimming robots to remove flash at a faster rate. Automated systems ensure consistency in flash removal, improving quality control and reducing labor costs. It’s suitable for medium to high-volume production where speed and precision are essential.
Laser Removal Methods
Laser flash removal is a precision technique that uses focused laser beams to vaporize or melt off flash material from the molded part. This method is highly effective for parts with intricate geometries and fine details. Laser removal is precise, reduces material waste, and minimizes the risk of damaging the molded part.
Comparing the Cost of Preventive Measures vs. Post-Processing
Preventive measures for flash, such as optimizing mold design and adjusting injection parameters, require higher initial investment but offer long-term cost savings by reducing defects and minimizing the need for post-processing. In contrast, post-processing methods like manual trimming or automated flash removal incur ongoing costs due to labor, equipment, and material waste. While post-processing may seem less costly in the short term, preventive measures ultimately prove more cost-effective by enhancing overall production efficiency and reducing the frequency of flash-related issues.
Conclusion: The Key Points to Prevent Flash in Injection Molding Process
preventing plastic injection molding flash is far more cost-effective than removing it post-production. By controlling the injection molding process and maintaining high mold quality, manufacturers can significantly reduce the likelihood of flash formation. Key preventive measures, such as optimizing mold design, adjusting injection parameters, and ensuring proper mold maintenance, help eliminate the root causes of flash. Continuously optimizing production processes not only reduces defects but also improves the yield rate, leading to better overall efficiency and cost savings. Ultimately, a proactive approach to flash prevention enhances the consistency and quality of molded parts, benefiting both the production timeline and the bottom line.
